Bolt Energy 105AH 36 Volt Standard Lithium Battery Kit “MINI”
Include Required 12V Converter
(Recommended)
Optional Add Fuse Box (Recommended if you Have Multiple 12V Accessories)
Bolt Energy Batteries are compatible with these golf cart brands: Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman, EZGO TXT, EZGO RXV, Elite, EPIC, Evolution, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha. Bolt Energy USA is compatible with many other carts and electric EV vehicles. Please contact us for more information.
As the name suggests, the 38-volt 105Ah “CLASSIC” was developed for customers who just can’t let go of their vintage golf car. The 36-volt electrical system, for the most part, has been discontinued as 48- and 72-volt systems are much more efficient. Ranges, depending on how extreme the car is modified and how the car is loaded and driven, range from 15 to 35 miles.

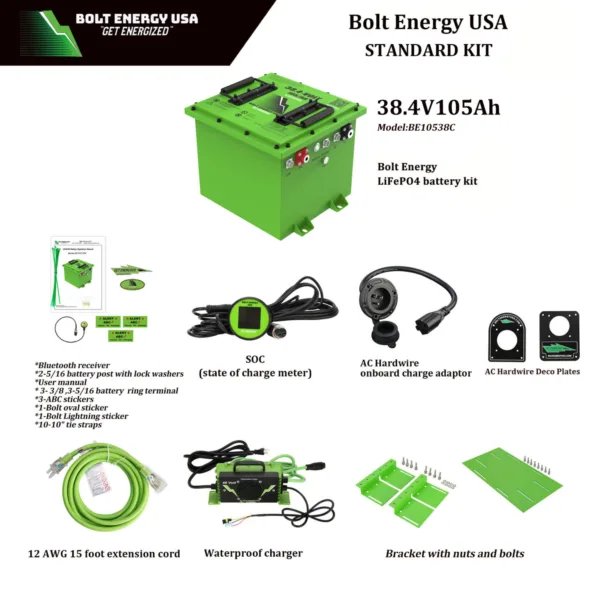

Features
- 38V-105AH BATTERY
- Bluetooth receiver

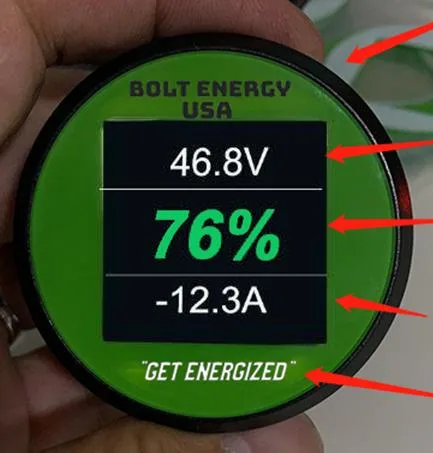

- SOC “state of charge meter”
- Owners manual “SIMPLE installation instructions”
- 6- 3/8 battery ring terminal connectors
- 10-10″ tie straps
- Bolt Energy USA sticker/s
- Waterproof high-speed charger
- Mounting brackets, Nutts & bolts
MECHANICAL SPECIFICATIONS
- Dimensions (L x W x H): 11.14″ x 10.58″ x 10.67″
- Weight: 77.27lbs (35.05kg)
- Terminal Type: M8*1.5*25mm
- Cell Configuration: 1P16S
- Case Material: Powder Coated Steel
- Enclosure Protection: Designed with IP66 Stardard
- Cell Type – Chemistry: Prismatic- LiFePO4
DISCHARGE SPECIFICATIONS
- Maximum Continuous Discharge Current: 250A
- Peak Discharge Current: 520A ± 15.6A (30S)
- BMS Discharge Current Cut-Off:
- 260 A ± A7.8A (50S)
- 520A ± 15.6A (30S)
- BMS Discharge Voltage Cut-Off: 30V
- Recommended Low Voltage Disconnect: 36.0V
- BMS Reconnect Voltage: 31.2V
- Discharge Temperature: -4 to 149°F (-20 to 65°C)
ELECTRICAL SPECIFICATION
- Nominal Voltage: 38.4V
- Working Voltage: 32.4 – 43.8V
- Recommended Voltage: 36.0V – 42.6V
- Nominal Capacity: 105Ah
- Energy: 4.032KWh
- Capacity @ 25A: 252 min
- Efficiency: 0.99
- Self Discharge: <3% per Month
CHARGE SPECIFICATIONS
- Recommended Charge Current: 5 – 52A
- Maximum Input Current: 350A
- Charge Current Cut-Off: 375A
- BMS Charge Voltage Cut-Off: 43.8V
- Reconnect Voltage: <43.8V
- Charging Temp. Range: 34°F to 140°F (0-60°C)
COMMUNICATION
- Bluetooth: Bluetooth receiver
- CAN: CAN port for testing battery
